Using Streamlit with RunPod

For work, I often make backend APIs for clients (typically with FastAPI).

However, I sometimes need to demo a tool first, so a client can gauge the functionality and decide if it's something they want to incorporate. To make demos, I like to use Streamlit because it's easy and the UI looks nice.

When I make an app with Streamlit, I can deploy it for free using Streamlit Community Cloud, but if my demo requires more than basic computing resources — e.g., if I need a GPU — then this won't work.

In this case, I can share the app using RunPod with an exposed HTTP port.

Exposing HTTP ports in RunPod

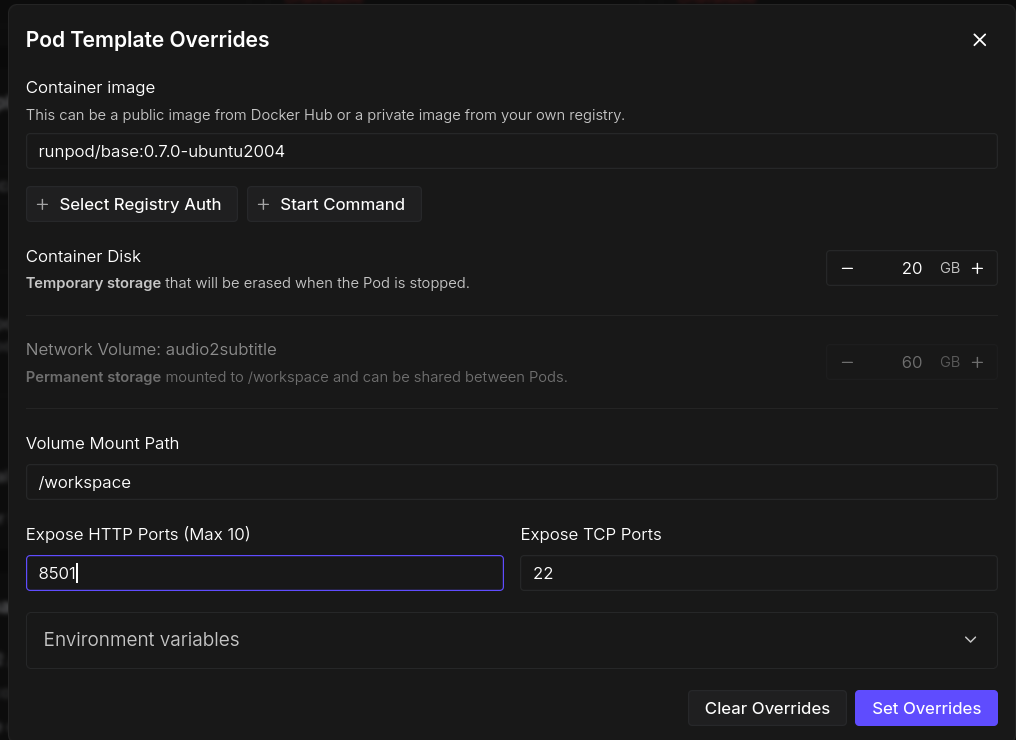

When adding a Pod to a Network Volume, click "edit" on the Pod template (under "Configure Deployment"). Then, on the pop-up modal ("Pod Template Overrides"), there is an option to Expose HTTP Ports:

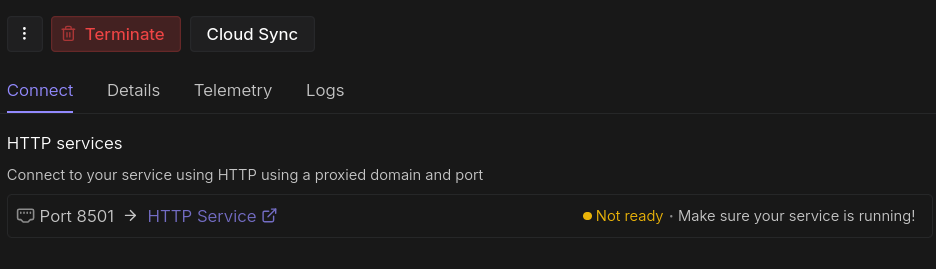

The default port for Streamlit is 8501, so set this. Then, clicking on the deployed Pod shows an HTTP Service link I can share once the Streamlit app is running:

Guide to setting up a Streamlit App in RunPod

Step 1: Make app "private" (optional)

To make a Streamlit app "private", simply add a password-protected login screen to the app. Here's example code:

# Towards the top of streamlit_app.py
#...
def check_password() -> bool:
    """Simple password gate using Streamlit secrets."""
    if "password_ok" not in st.session_state:
        st.session_state.password_ok = False

    if st.session_state.password_ok:
        return True

    st.title("🔒 Private App")
    st.caption("Ask Kyle for access")

    pw = st.text_input(
        "Enter password",
        type="password",
        key="password_input",
    )

    if pw:
        if hmac.compare_digest(pw, st.secrets["APP_PASSWORD"]):
            st.session_state.password_ok = True
            st.rerun()
        else:
            st.error("Incorrect password")

    return False


if not check_password():
    st.stop()
#...

Then, add a secrets.toml file to .streamlit/ with a password to share with colleagues.

#.streamlit/secrets.toml
APP_PASSWORD = "YourCustomPassword"

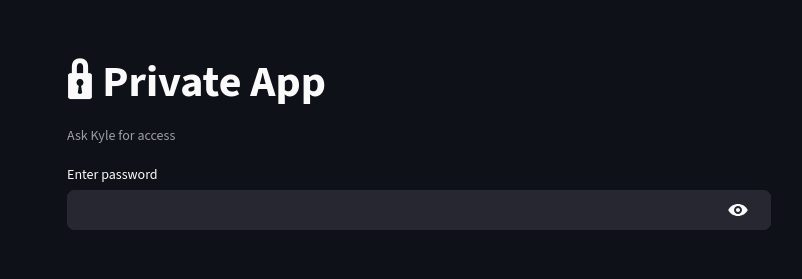

Here's what this looks like for the user:

Step 4: Shell script to run Streamlit app

To run a Streamlit app locally, I'll type something like this in the terminal:

streamlit run app/streamlit_app.py

However, when running a Streamlit app from RunPod, there are a few more flags I need to pass to make it work properly:

streamlit run app/streamlit_app.py \

# Allows RunPod Proxy to access the app:
  --server.address 0.0.0.0 \

# Explicitly set listening port to avoid potential mismatch:
  --server.port 8501 \

# Tells Streamlit: "You are a server-only app, don't try to act like a desktop":
  --server.headless true \

# Disabling CORS avoids issues related to how RunPod serves the app (via reverse proxy):
  --server.enableCORS false \

# Disabling CSRF (XSRF) token checks avoids issues related to how RunPod serves the app:
  --server.enableXsrfProtection false

I recommend putting all of this into a shell script on /workspace, so I can just type /workspace/start_streamlit.sh to start the app from a terminal connected to the pod.

Example shell script:

#!/usr/bin/env bash
set -e                  # Immediately exit script in case of errors
source /workspace/venvName/bin/activate # Activate virtual env

cd /workspace/git-repo  # Repository with the code I want to run

streamlit run app/streamlit_app.py \
  --server.address 0.0.0.0 \
  --server.port 8501 \
  --server.headless true \
  --server.enableCORS false \
  --server.enableXsrfProtection false

Obviously, change /venvName/ and /git-repo to match the project.

Once the app is running, simply share the HTTP service link to the Pod (see image above) and anyone can access it!
